Electric bike Ecobike M
135 km
Maximum range
556.8 - 672 Wh
Battery capacity
250 W
Motor power
27.3 kg - 27.4 kg
Bike weight

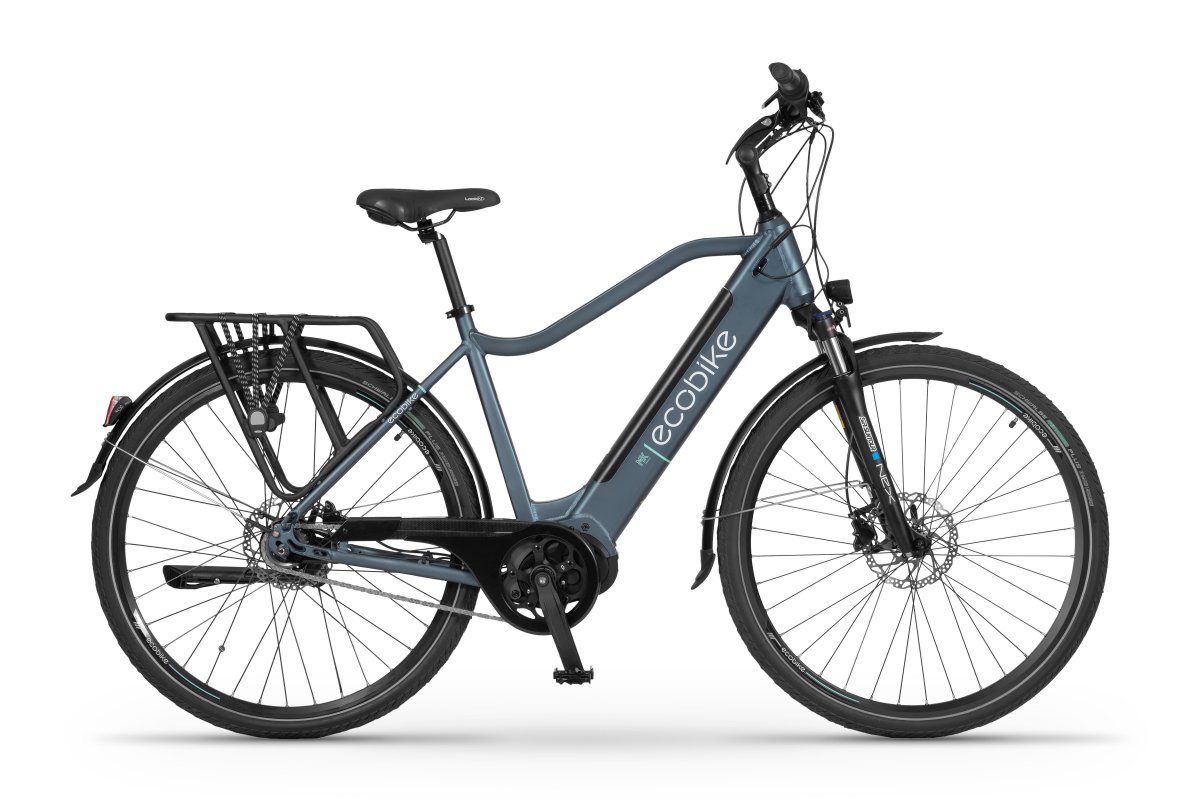

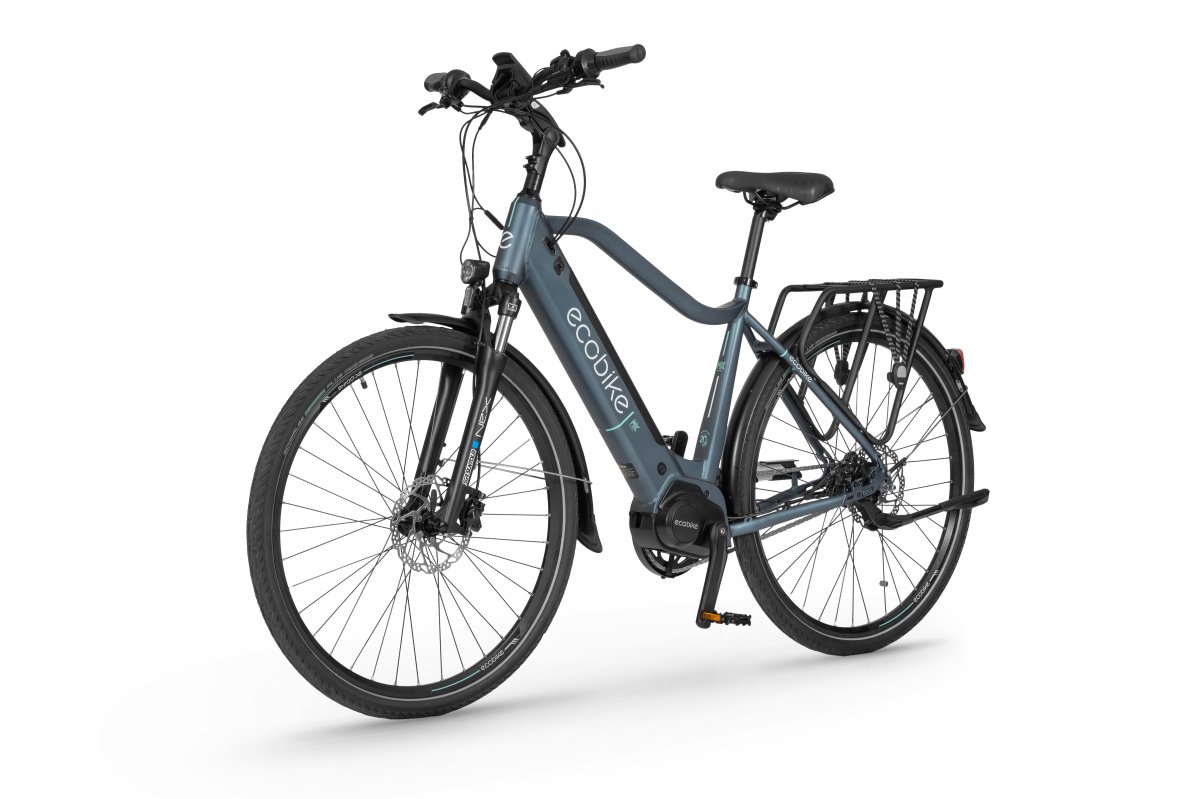

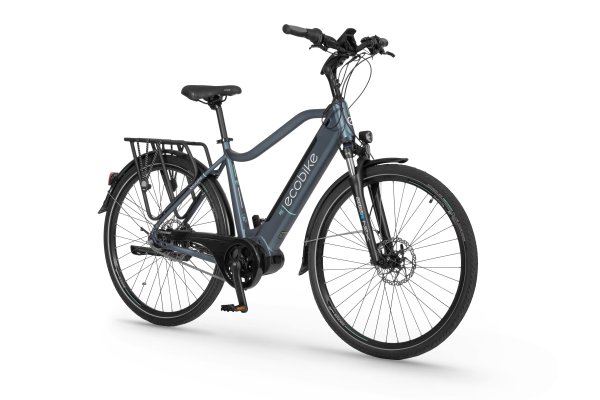

The geometry of the frame used in the MX not only pleases the eye thanks to a perfectly matched battery or an interesting line, but above all it works well in practice.
The new, proprietary design allows you to comfortably get in and take the optimal position for short journeys or longer trips.

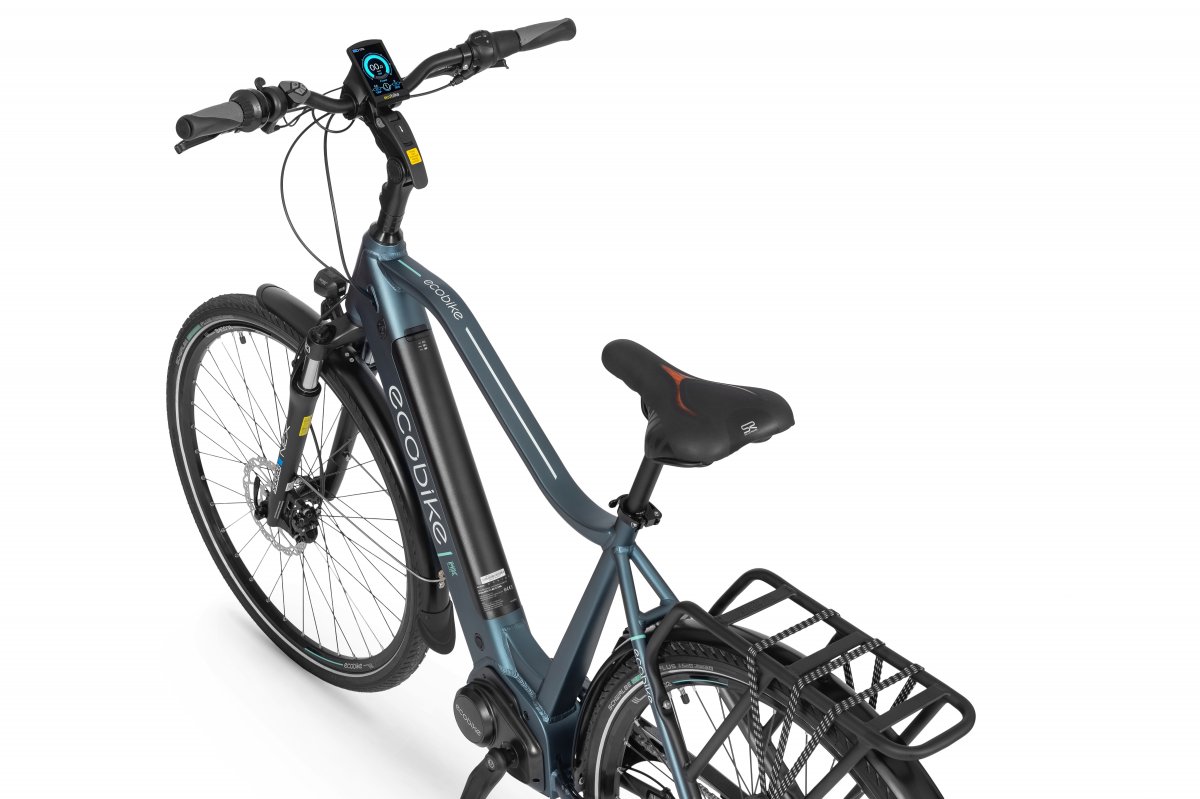

The revised ergonomics are characterized by great weight distribution, improved battery grip and easier insertion and removal.

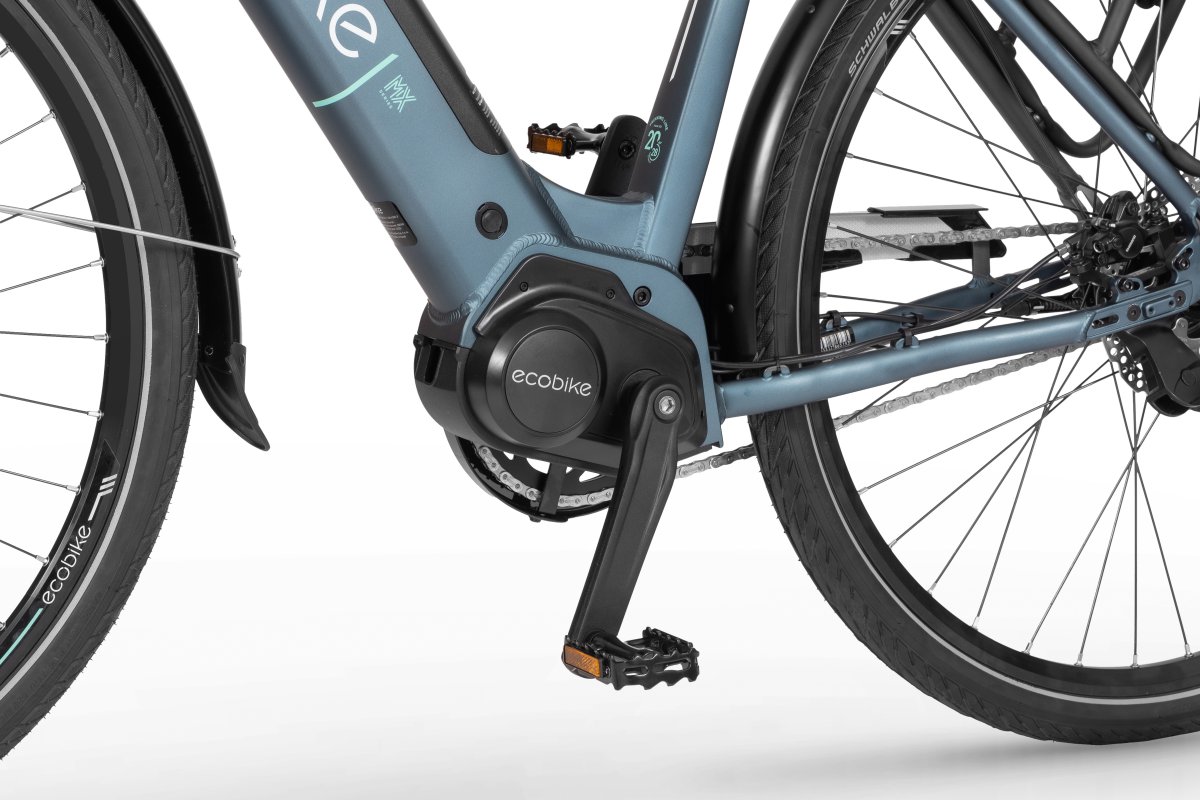

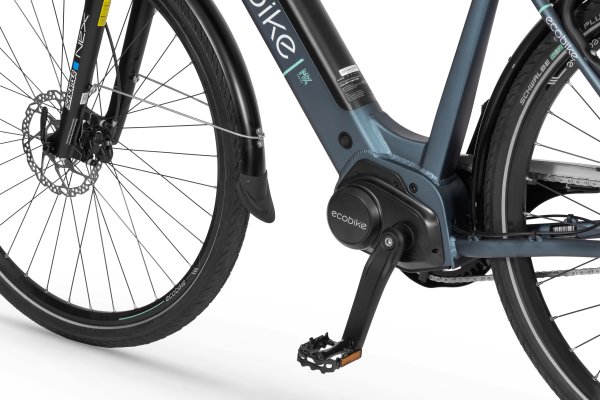

The heart of the Ecobike MX is the ANANDA central motor, which we have used for a long time. Its high torque of 100 Nm provides efficient support even on steep climbs. Equipped with a pressure sensor, it enhances the unique driving experience, which remains smooth even in difficult conditions.
The secret of good performance is the 48V system powered by a powerful Greenway/LG battery - 556.8 or 672 Wh

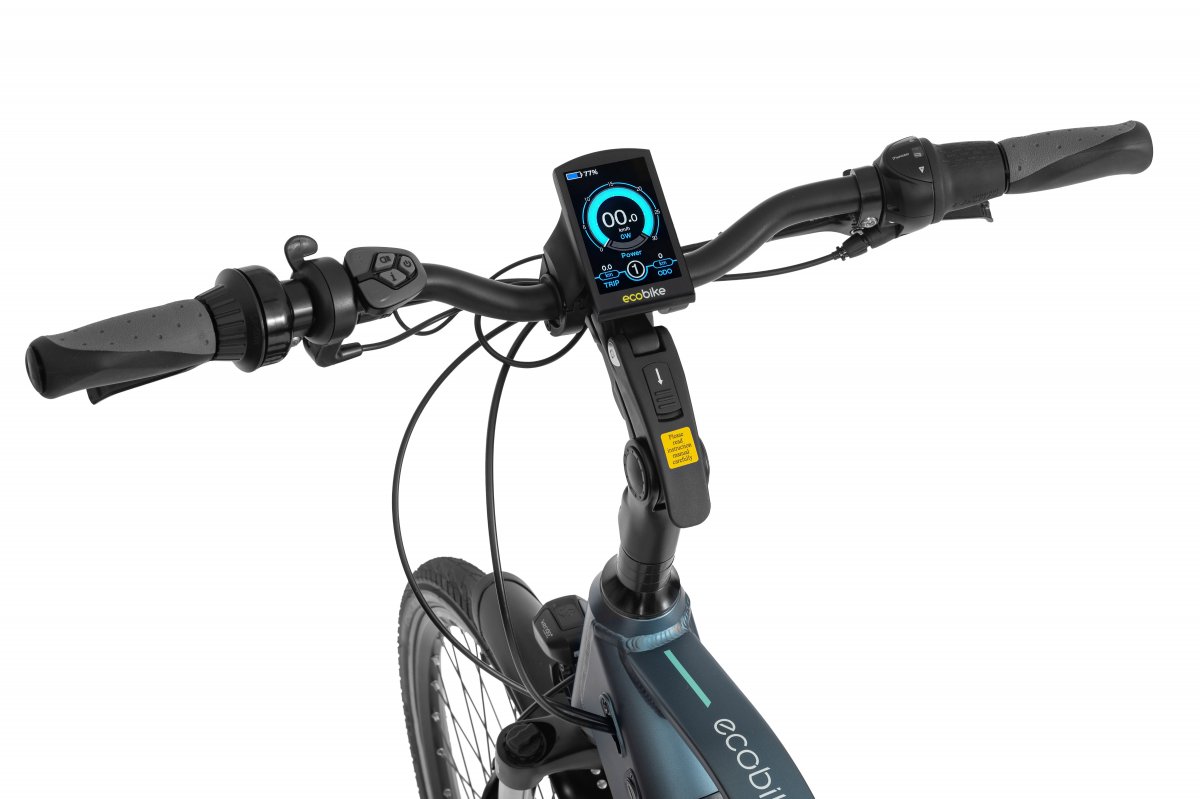

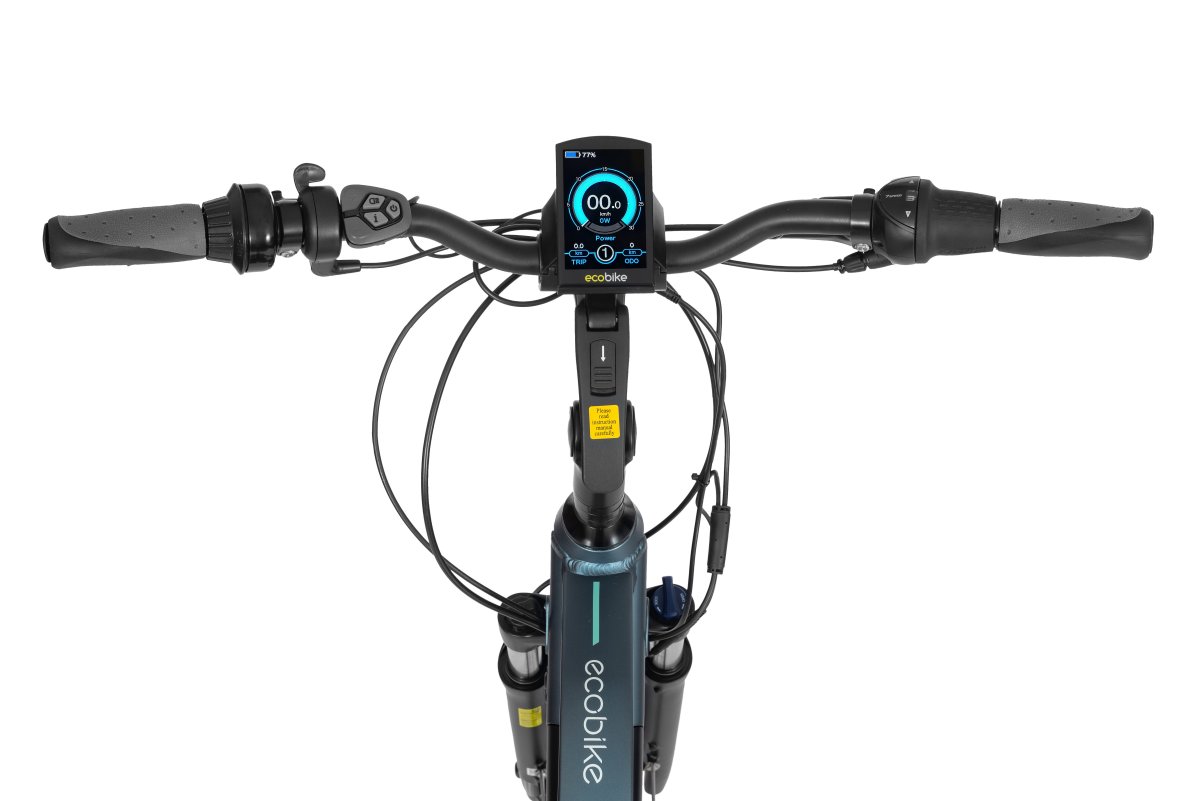

You will surely like the control panel with a color display. It has been equipped with a twilight sensor that automatically turns on the bike's lighting after dark.
The user-friendly interface ensures easy, intuitive operation, and there are many functions and configuration options for electric support.
Even the best system will not provide interesting driving experiences without the right equipment.

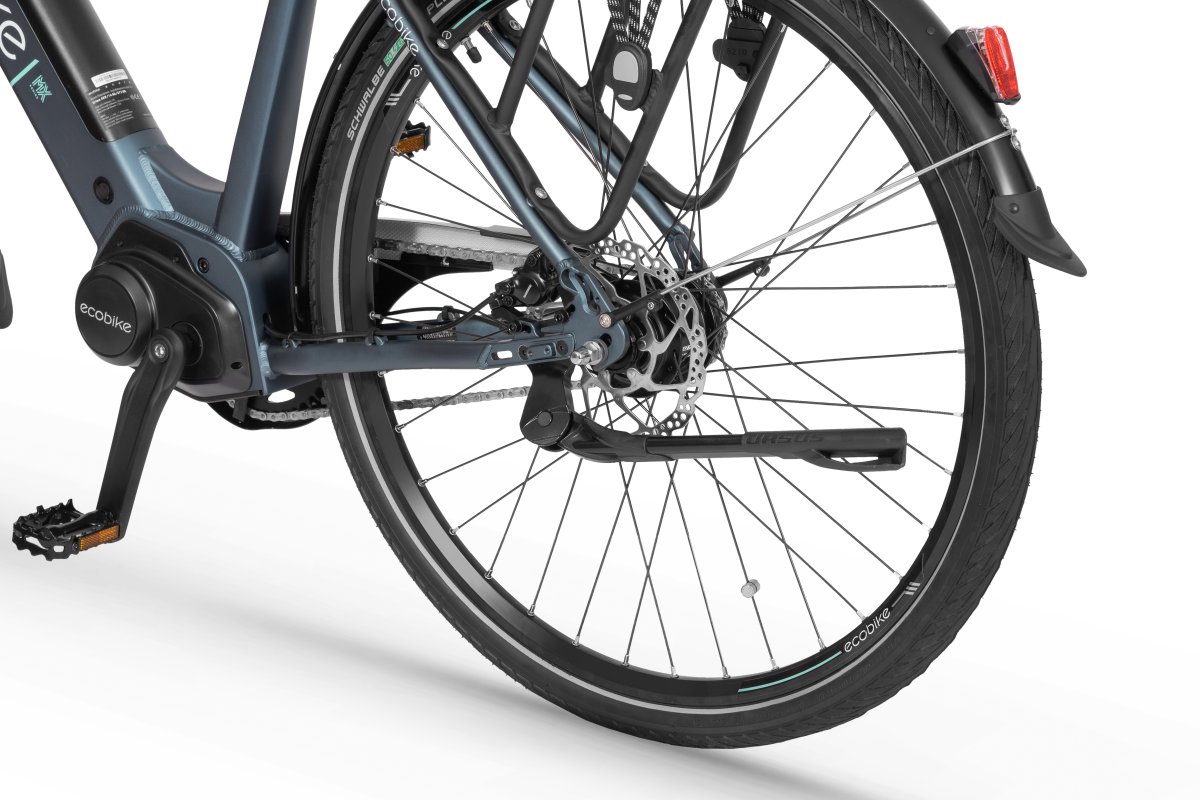

The Shimano Nexus 7 derailleur plays an important role in the MX specification, which is perfect for city traffic, because you can change gears even when stopped at traffic lights. It is also characterized by durability and resistance to external factors.

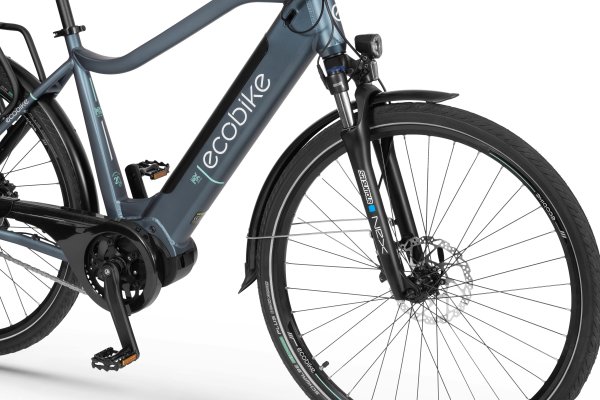

We've also added a SunTour Nex shock absorber, Shimano hydraulic disc brakes and powerful Schwalbe Energizer Plus tires - all of which make the MX a solid bike that can take you on many demanding trails.
The Ecobike MX also has a rack, mudguards, a comfortable Selle Royal gel saddle and complete lighting, so it is ready for your first trip right away.
Choose the reasons why MX is the bike for you - there are many!
Geometry
AEffective top tube length (mm)
610 (20") / 620.7 (23")
BHead tube (mm)
162
CSeat tube length (mm)
508 (20") / 584 (23")
DWheel base (mm)
1136.8 (20") / 1147.5 (23")
ESeat tube angle (degrees)
73
FHeadset angle (degrees)
70
Product specification
Battery
Cells brand
EVE / LG
Capacity Wh
556.8 - 672
Type
Li-ion
Voltage
48 V
Range
up to 135 km
E-bike system
Motor
Ananda
Model
M81
Type
Middrive
Voltage
48 V
Torque
100 N.m
Power
250 W
Controller
ANANDA
Speed
25 km/h in accordance with EU standard EN 15194
Display
Display model
C900
Display brand
Ecobike
Display type
color LCD
Bicycle
Frame
20" / 23" hydroformed alluminium
Fork
SunTour NEX HLO-DS travel 63 mm
Wheel
28" reinforced three-chambered rims / Sapim spokes
Tires
28" x 1.75 Schwalbe Energizer Plus
Front hub
Shimano TX505
Rear Hub
Shimano NEXUS
Handlebar
Promax 660 mm 25.4
Handlebar stem
Promax 7° / 110 mm
Grip
Velo VLG-519AD2
Brakes
Shimano MT200 Hydraulic
Shifters
Shimano NEXUS 7 speed
Grip
Shimano NEXUS Revo 7 speed
Freewheel
Shimano NEXUS 20T
Chain / Belt
KMC
Crank
Prowheel 44T
Pedals
Velo
Saddle
Selle Royal Lookin Basic
Seat post
Promax 27.2 / 350 mm
Front lights
Spaninga Kendo XE
Rear light
Spaninga MLL XE
Maximum load
125 kg
Weight
27,3 kg - 27,4 kg
Safety and quality first
Bikes are all about the equipment. Ecobike e-bikes combine reliable technologies from established manufacturers with durable electric motors and long-lasting batteries.
All Ecobike products are manufacured according to strict European Union regulations & standards: EN15194 / EPAC / ISO4210-2
E-bikes FAQ
What is the difference between an e-bike and a traditional bicycle?
An electric bike, or e-bike, supports muscle strength and makes it easier to climb hills and travel over longer distances. An electric bike can be a fast and cheap means of transport in the city (electric city bikes, e.g. the Ecobike City series). There are also electric mountain bikes (MTB), trekking, which give a lot of pleasure to ride on any terrain. Ecobike electric bicycles are suitable for everyone. Skills or age don't matter.
How fast can I ride an electric bike?
Electric bicycles reach different speeds, depending on the power and type of motor, as well as the battery. In accordance with applicable regulations, electric bicycles can travel on public roads at speeds up to 25 km/h. After exceeding this speed, the electric support is turned off and we are dependent on the strength of our muscles.
Is an electric bike heavier than a regular bike? How much does an e-bike weigh?
An average electric bike weighs about 24 kg. Additional kilograms include engine, battery and drive system. The higher weight of the bike is not felt in any way while riding.
How long does it take to charge the electric bicycle battery? Where can i do that?
The electric bicycle battery is charged anywhere that has access to a regular outlet. We can charge it at home, at work, anywhere. It is important to follow the manufacturer's rules set out in the instructions, including use the original charger and do not allow long-term discharge
How often do you need to charge the battery?
The frequency of charging depends on the driving style. Some will charge the battery every day, others every week. If we use the electric bicycle regularly, we charge the battery when it is discharged. Remember to use the original charger and not to drain the battery during extended periods of non-use (e.g. in winter), but to maintain a charge level of approx. 60-80%. Thanks to this, we will significantly extend the battery life
How far can you ride on a single charge?
The range you can achieve on a single battery charge depends on many factors and can vary significantly. Key aspects affecting range include:
- Weather: ambient temperature, as well as wind strength and direction.
- Road conditions: terrain slope and surface quality.
- Technical condition of the bike: proper tire pressure and regular maintenance.
- Weight: total mass of the rider, bike, and any carried luggage.
- Riding style: acceleration and gear-shifting behavior.
- Battery condition: capacity and overall health.
- Use low gears at low speeds and when starting off
- Gradually shift to higher gears as speed increases
- For smooth assistance and range optimization, reduce pedal pressure while changing gears.
What is the battery life span? How long does the bike battery last?
The analysis shows that the average battery of an electric bicycle retains its original capacity after about 700-800 charging cycles (manufacturers usually indicate a value> 500 cycles). This means that with very intensive use of the electric bicycle all year round, when charging the battery every 2 days, the battery will remain functional for up to 3 years! Importantly, after this time, the battery will continue to work, but may gradually require more frequent cycles and reduced capacity
How to care for an electric bike? Can you fix it yourself?
An electric bicycle requires similar maintenance as a traditional bicycle. To avoid breakdowns and problems, you must regularly clean dirt, dust, mud. Ecobike electric bicycles have already traveled tens of thousands of kilometers without any fault. However, when a malfunction occurs, it is advisable to contact a professional service.
