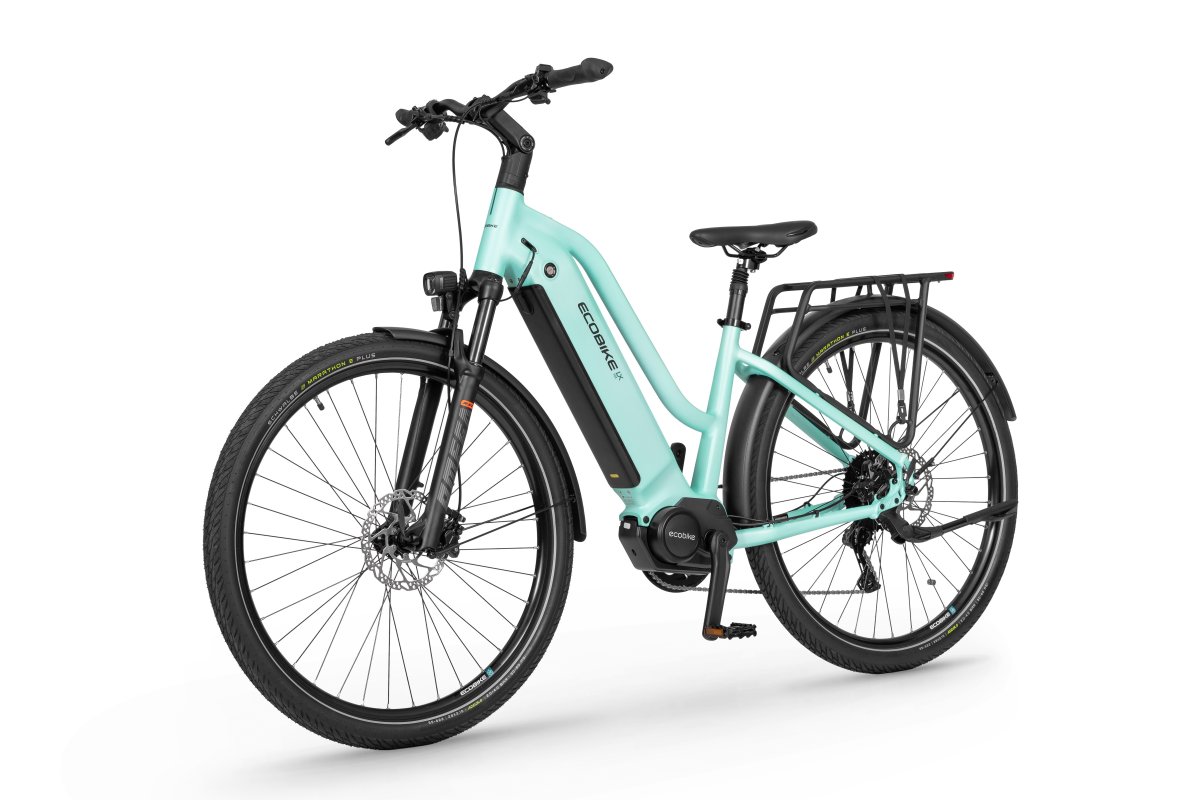

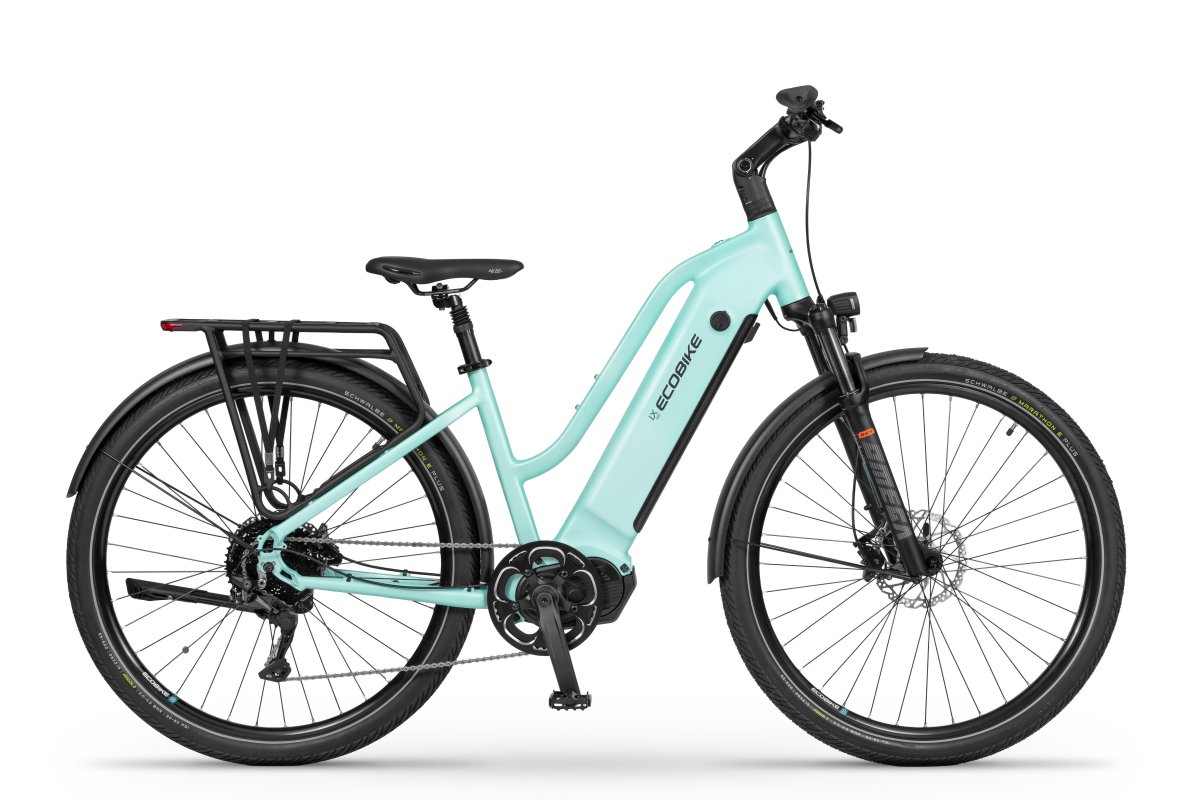

Electric bike Ecobike LX 500 Mint
175 km
Maximum range
720 - 960 Wh
Battery capacity
250 W
Motor power
28.8 kg (17") / 28.9 kg (19")
Bike weight
LX 500 Mint
In the new edition of the X500 electric bike line, we've changed everything.
We've retained only the highest standards that have always been at the core of this series. Discover what progress truly means. Anew.
Our path is progress. Now it's your turn to choose your own and follow it with the support of the best technology. Explore new possibilities with the Ecobike LX 500 Graphite and enjoy limitless riding!

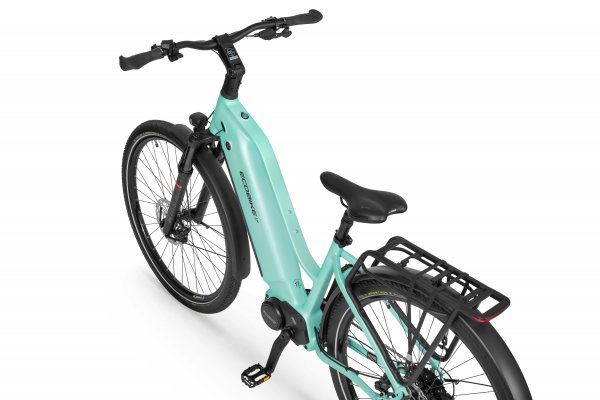

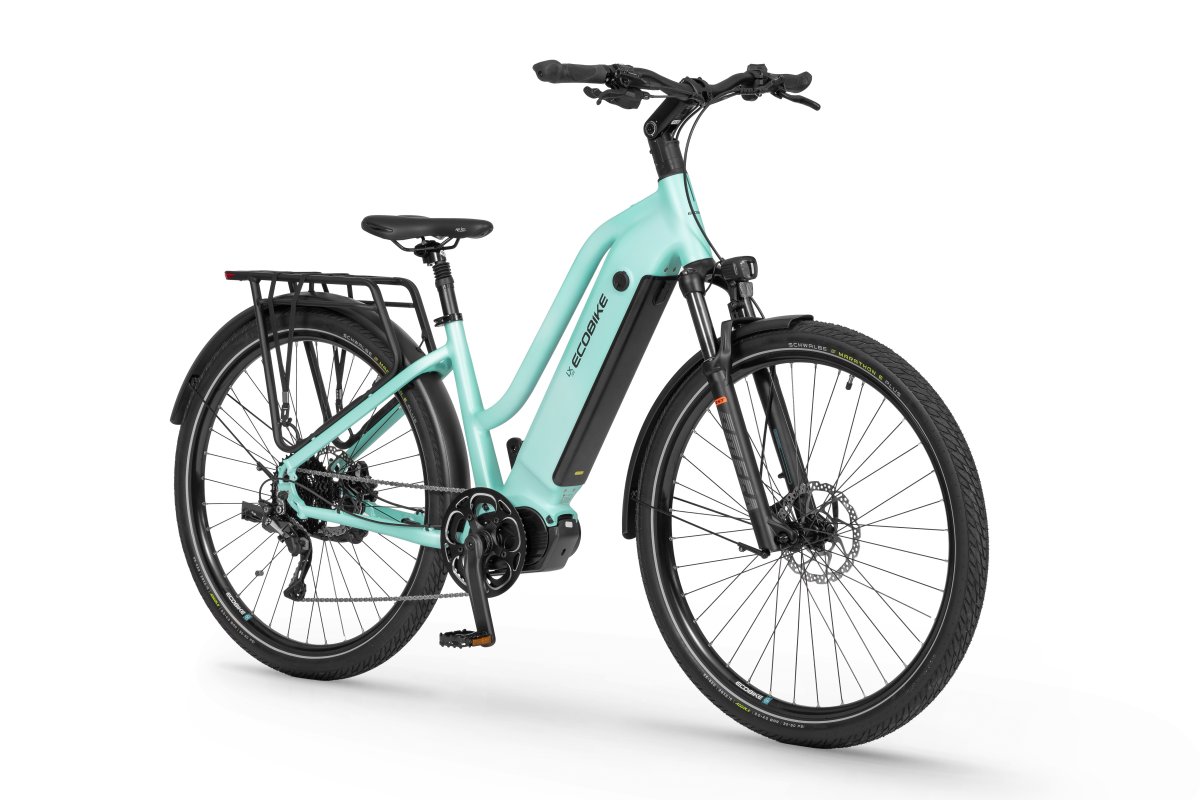

The exceptional design of the LX 500
bike encompasses three key factors for us: comfort, durability, and ergonomics. The new frame geometry allows you to maintain an optimal position for both short rides and longer trips. The reinforced construction ensures safety, while all vibrations and shocks are distributed in a way that maximizes riding pleasure. The sleek new look is also largely due to the concealment of cables in the stem and handlebars.
We've achieved excellent balance

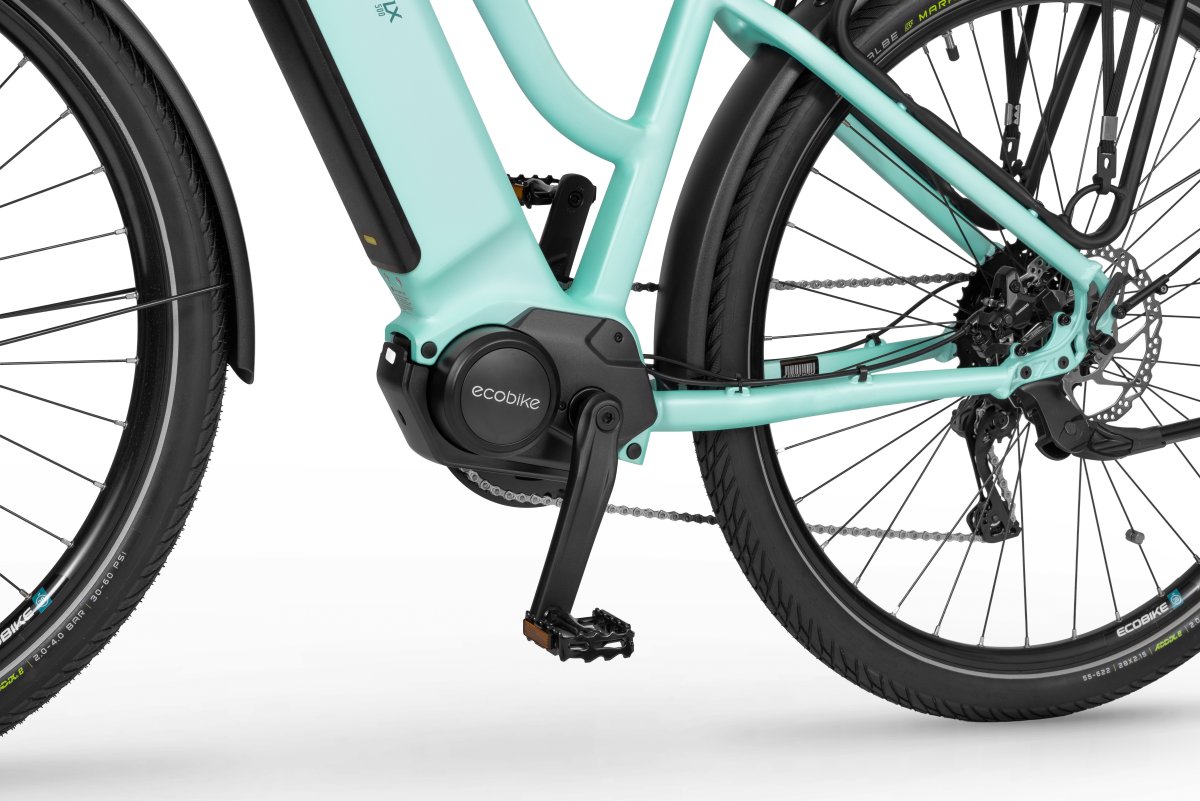

by placing the electric motor at the correct angle and the battery in the lower part of the frame. You can be sure that the LX 500 electric bike will handle safely and confidently.
The assistance system embedded in the Ecobike LX 500 is an intelligent organism.

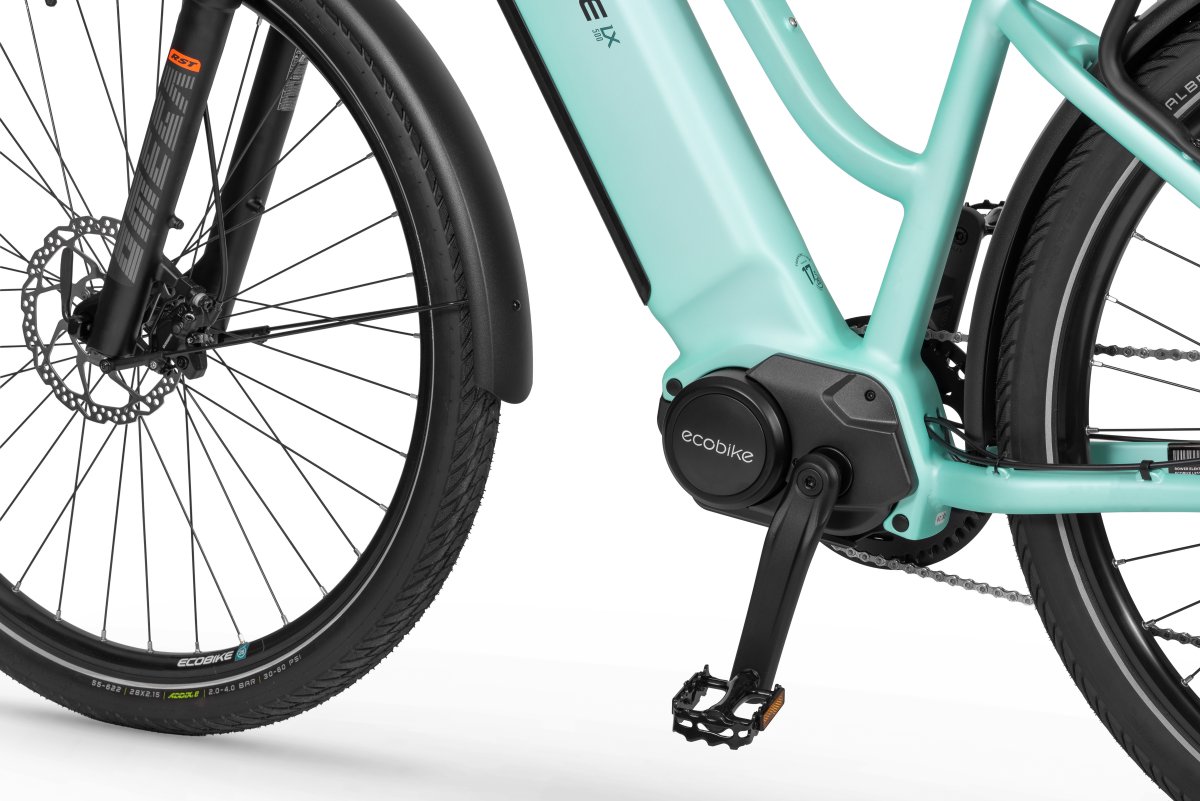

The Ananda® central motor generates up to 130 Nm of torque, allowing this machine to climb even the steepest hills. While the potential is substantial, the user decides how they want to ride, and the intelligent monitoring system adjusts the bike's operation to ensure smooth, long-lasting performance that closely mimics natural bike riding.
Exceptional capabilities wouldn't be possible without advanced power.

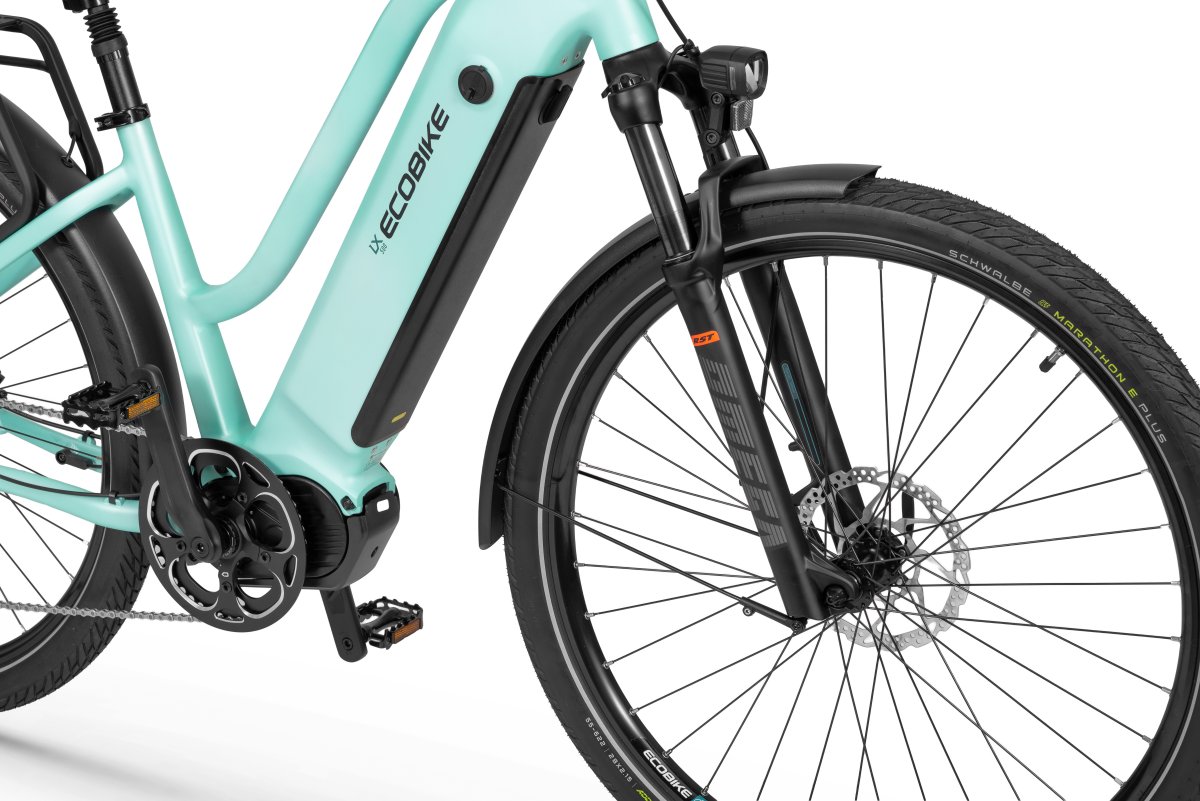

The Ecobike LX 500 is powered by 48V batteries equipped with Smart BMS technology, which intelligently manages battery operation to maintain its condition for years. Now you have two battery options to choose from, each powerful: a 15 Ah with 720 Wh capacity and a 20 Ah with nearly 1000 Wh capacity! We've made sure that you won't run out of energy anytime soon – whether it's a planned trip or exploring the world.

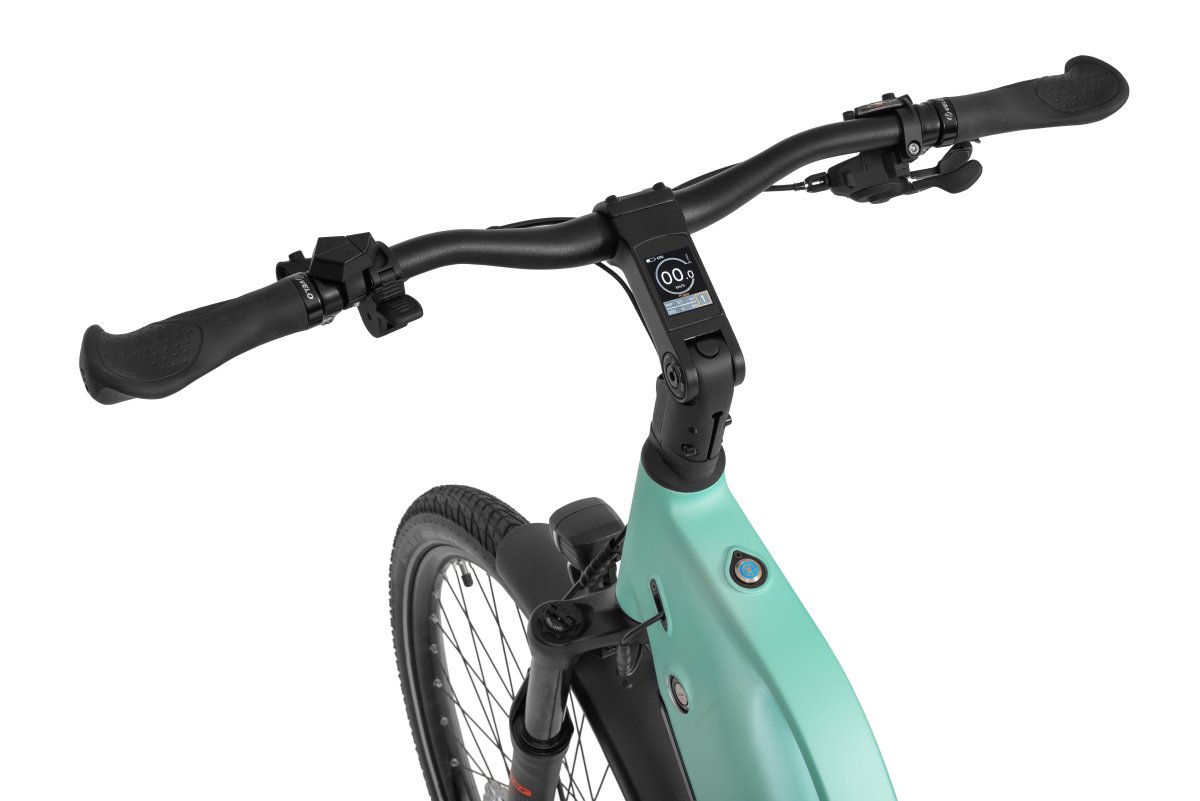

You'll surely appreciate the refreshed control panel with a color display.
The user-friendly interface provides easy, intuitive operation, with plenty of features and customization options for electric assistance. Now you can pair the display with your smartphone, through which you can conveniently input your own settings.
Check out the app! Download it to your smartphone using the QR code below and take advantage of the features offered by ANANDA RIDE
| App Store | Google Play | |
|---|---|---|
 |
 |
 |
The Ecobike LX 500 is here so you can choose your own path. Embrace the new possibilities unlocked by its phenomenal technology!**
Geometry
AEffective top tube length (mm)
595 (17") / 605 (19")
BHead tube (mm)
160
CSeat tube length (mm)
432 (17") / 482 (19")
DWheel base (mm)
1147.7 (17") / 1157.7 (19")
ESeat tube angle (degrees)
72.50
FHeadset angle (degrees)
69
Product specification
Battery
Cells brand
LG
Capacity Wh
720 - 960
Type
Li-ion
Voltage
48 V
Range
up to 175 km
E-bike system
Motor
Ananda
Model
M100
Type
Middrive
Voltage
48 V
Torque
130 N.m
Power
250 W
Controller
Ananda
Speed
25 km/h in accordance with EU standard EN 15194
Display
Display model
KD-786 - stem display inside
Display brand
Ecobike
Display type
color LCD
Compatible application *
Ananda Ride
Bicycle
Frame
17" / 19" hydroformowane aluminium
Fork
RST OMEGA-TNL-29” travel 100 mm
Wheel
28" reinforced three-chambered rims / Sapim spokes
Tires
28" x 2.15 Schwalbe Marathon E-Plus
Front hub
Shimano HB-TX505, QR, 36H, Center Lock
Rear Hub
Shimano FH-TX505-8, QR, 36H, Center lock
Handlebar
Promax 700 mm 31.8
Handlebar stem
TDS-D658A-8FOV, 31.8° / E: 105 mm
Grip
Velo VLG-1189D3
Brakes
Shimano MT400 Hydraulic
Shifters
Shimano Deore 10 speed
Grip
Shimano Deore 10 speed
Freewheel
Microshift CS-H103, 11-42T, 10 speed
Chain / Belt
KMC e10 Turbo Silver
Crank
Ananda 46T
Pedals
VP
Saddle
Selle Royal Ariel
Seat post
Promax 30.9" / 400 mm

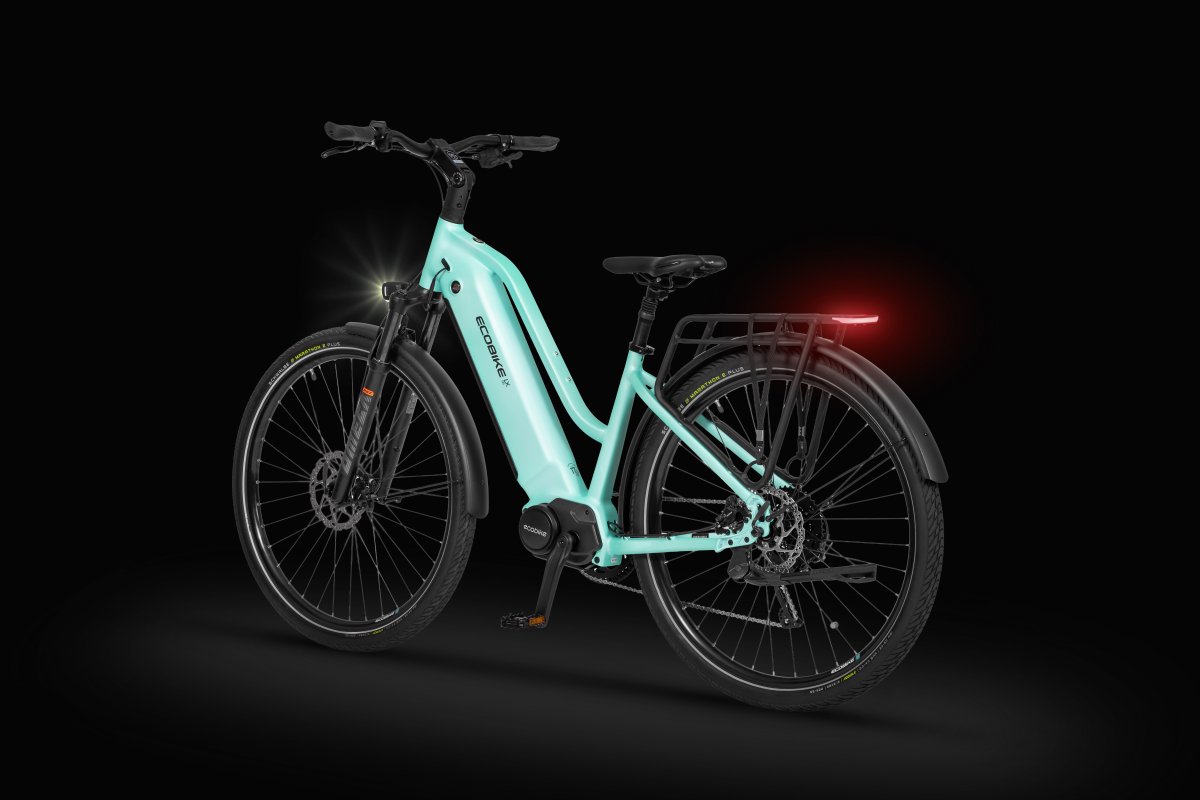

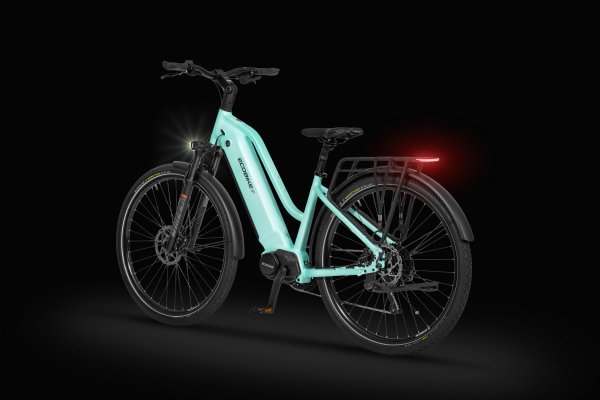

Front lights
Herrmans MR5
Rear light
Spaninga GLOW XE
Maximum load
125 kg
Bicycle pannier mounting system
MIK
Weight
28.8 kg (17") / 28.9 kg (19")
* Compatible applications are created and provided by third parties independent of Ecobike. The applications are not part of the set. The bicycle manufacturer is not responsible for the operation or availability of the applications.
Safety and quality first
Bikes are all about the equipment. Ecobike e-bikes combine reliable technologies from established manufacturers with durable electric motors and long-lasting batteries.
All Ecobike products are manufacured according to strict European Union regulations & standards: EN15194 / EPAC / ISO4210-2
E-bikes FAQ
What is the difference between an e-bike and a traditional bicycle?
An electric bike, or e-bike, supports muscle strength and makes it easier to climb hills and travel over longer distances. An electric bike can be a fast and cheap means of transport in the city (electric city bikes, e.g. the Ecobike City series). There are also electric mountain bikes (MTB), trekking, which give a lot of pleasure to ride on any terrain. Ecobike electric bicycles are suitable for everyone. Skills or age don't matter.
How fast can I ride an electric bike?
Electric bicycles reach different speeds, depending on the power and type of motor, as well as the battery. In accordance with applicable regulations, electric bicycles can travel on public roads at speeds up to 25 km/h. After exceeding this speed, the electric support is turned off and we are dependent on the strength of our muscles.
Is an electric bike heavier than a regular bike? How much does an e-bike weigh?
An average electric bike weighs about 24 kg. Additional kilograms include engine, battery and drive system. The higher weight of the bike is not felt in any way while riding.
How long does it take to charge the electric bicycle battery? Where can i do that?
The electric bicycle battery is charged anywhere that has access to a regular outlet. We can charge it at home, at work, anywhere. It is important to follow the manufacturer's rules set out in the instructions, including use the original charger and do not allow long-term discharge
How often do you need to charge the battery?
The frequency of charging depends on the driving style. Some will charge the battery every day, others every week. If we use the electric bicycle regularly, we charge the battery when it is discharged. Remember to use the original charger and not to drain the battery during extended periods of non-use (e.g. in winter), but to maintain a charge level of approx. 60-80%. Thanks to this, we will significantly extend the battery life
How far can you ride on a single charge?
The range you can achieve on a single battery charge depends on many factors and can vary significantly. Key aspects affecting range include:
- Weather: ambient temperature, as well as wind strength and direction.
- Road conditions: terrain slope and surface quality.
- Technical condition of the bike: proper tire pressure and regular maintenance.
- Weight: total mass of the rider, bike, and any carried luggage.
- Riding style: acceleration and gear-shifting behavior.
- Battery condition: capacity and overall health.
- Use low gears at low speeds and when starting off
- Gradually shift to higher gears as speed increases
- For smooth assistance and range optimization, reduce pedal pressure while changing gears.
What is the battery life span? How long does the bike battery last?
The analysis shows that the average battery of an electric bicycle retains its original capacity after about 700-800 charging cycles (manufacturers usually indicate a value> 500 cycles). This means that with very intensive use of the electric bicycle all year round, when charging the battery every 2 days, the battery will remain functional for up to 3 years! Importantly, after this time, the battery will continue to work, but may gradually require more frequent cycles and reduced capacity
How to care for an electric bike? Can you fix it yourself?
An electric bicycle requires similar maintenance as a traditional bicycle. To avoid breakdowns and problems, you must regularly clean dirt, dust, mud. Ecobike electric bicycles have already traveled tens of thousands of kilometers without any fault. However, when a malfunction occurs, it is advisable to contact a professional service.
